led matrix

void setup()
{
  pinMode(A0, INPUT);
  pinMode(A1, INPUT);
  pinMode(A2, INPUT);
  pinMode(A3, INPUT);
  pinMode(10, OUTPUT);
  pinMode(11, OUTPUT);
  pinMode(12, OUTPUT);
  pinMode(13, OUTPUT);

}

void loop()
{
  int ldr1 = analogRead(A0);
  int ldr2 = analogRead(A1);
  int ldr3 = analogRead(A2);
  int ldr4 = analogRead(A3);

  if(ldr1 < 140)
  {
    digitalWrite(10, LOW);
  }
  else
  {
   digitalWrite(10, HIGH);
  }

  if(ldr2 < 140)
  {
    digitalWrite(11, LOW);
  }
  else
  {
   digitalWrite(11, HIGH);
  }

  if(ldr3 < 140)
  {
    digitalWrite(12, LOW);
  }
  else
  {
   digitalWrite(12, HIGH);
  }

  if(ldr4 < 140)
  {
    digitalWrite(13, LOW);
  }
  else
  {
   digitalWrite(13, HIGH);
  }

}

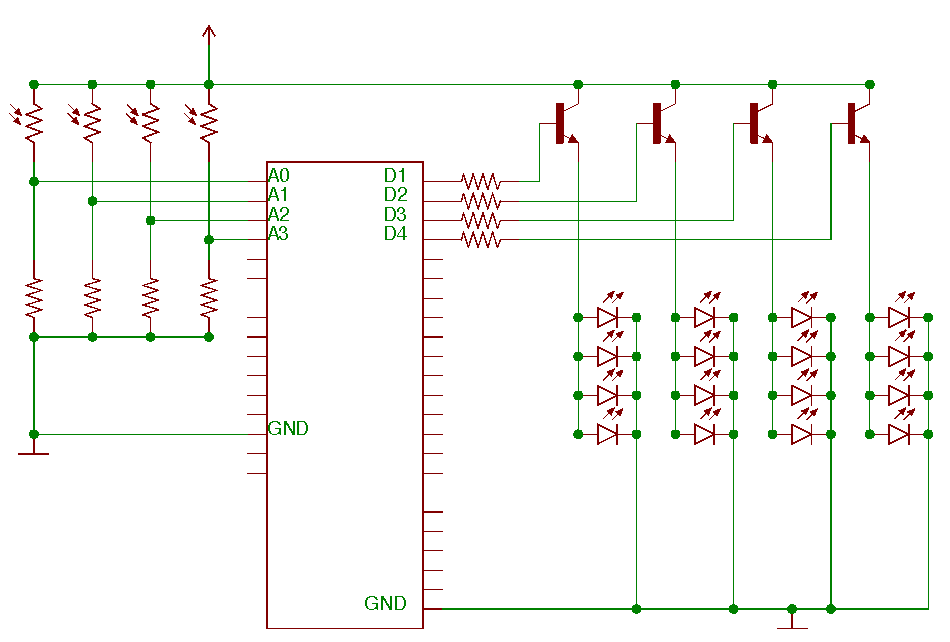

Eagle kopplingsschema

wilma led matrix eagle schematic
