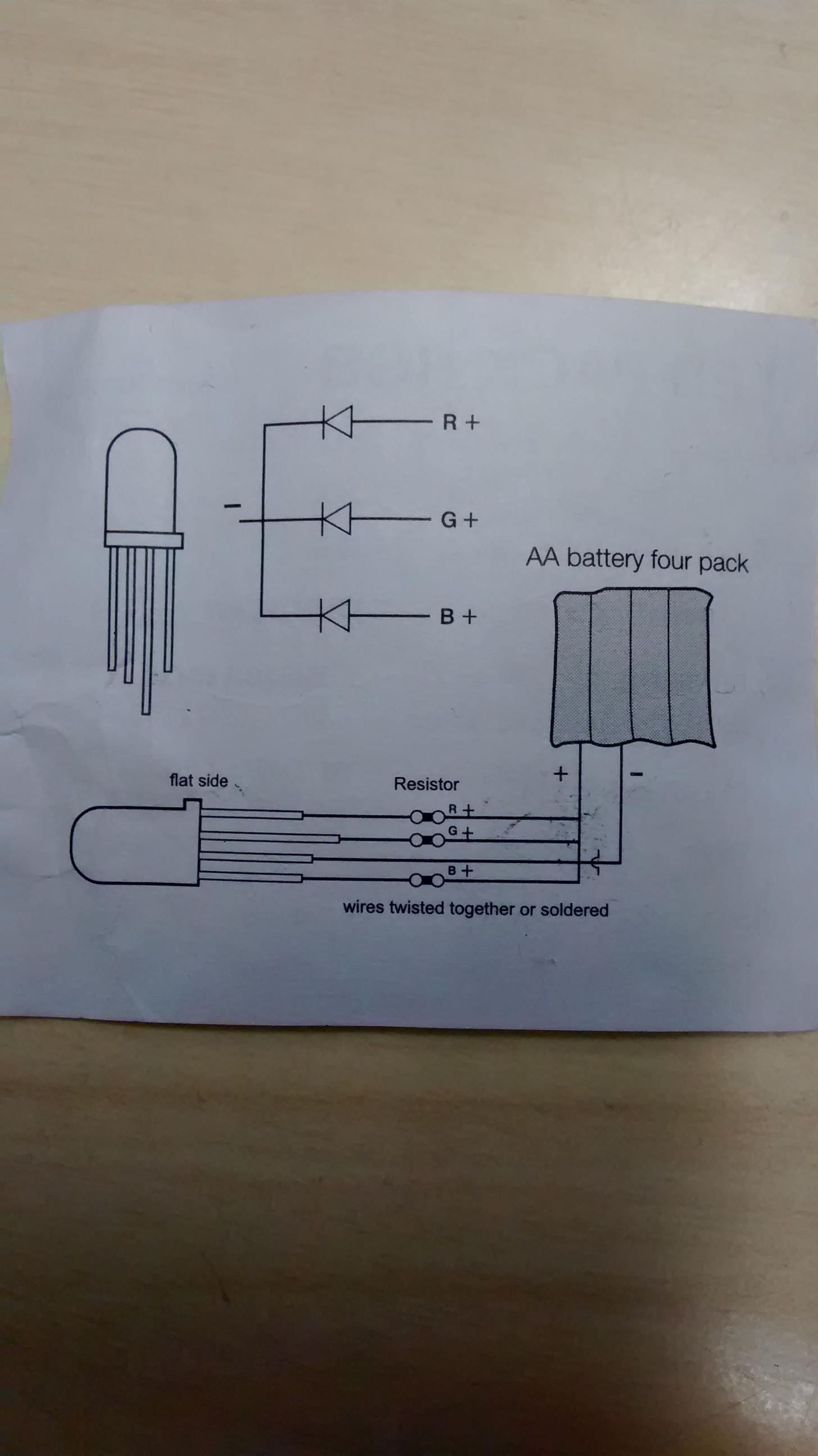

rgb led schematic

arduino koden

const int redpin = 11;
const int greenpin = 10;
const int bluepin = 9;

void setup()
{
  pinMode(redpin, OUTPUT);
  pinMode(greenpin, OUTPUT);
  pinMode(bluepin, OUTPUT);
}

void loop()

{
  digitalWrite(redpin, HIGH);
  digitalWrite(greenpin, LOW);
  digitalWrite(bluepin, LOW);
  delay(1000);
  digitalWrite(redpin, LOW);
  digitalWrite(greenpin, HIGH);
  digitalWrite(bluepin, LOW);
  delay(1000);
  digitalWrite(redpin, LOW);
  digitalWrite(greenpin, LOW);
  digitalWrite(bluepin, HIGH);
  delay(1000);
}
